ROM (Read only memory)

ROM (Read only memory) is an IC that can store thousands of binary numbers representing computer instructions and other fixed data.

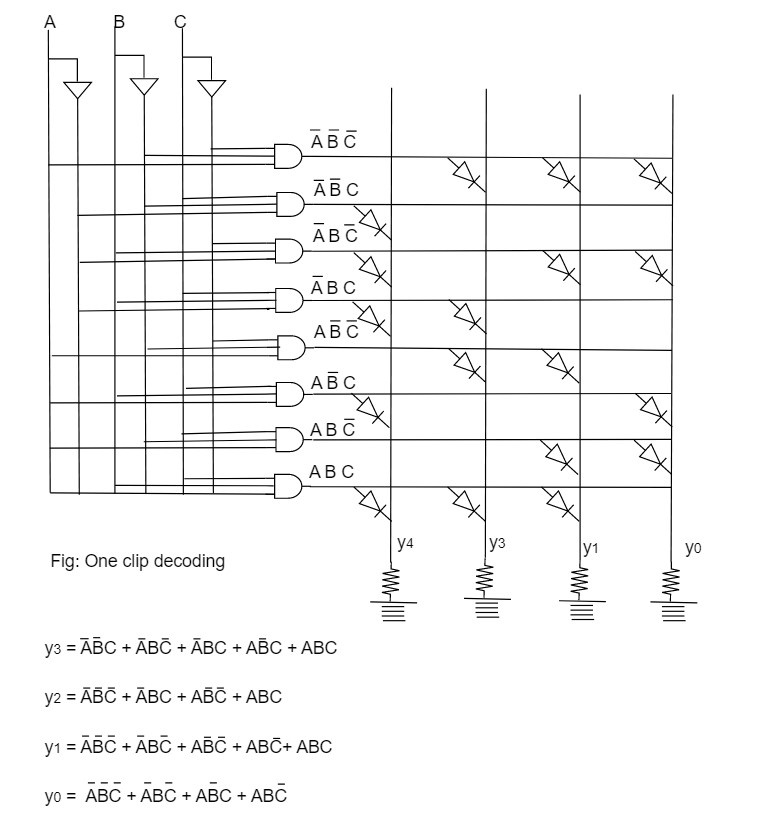

The AND gates of one clip decoding produce all the fundamental products and the diodes OR sum these products, the ROM is generating four Boolen function as follows.

This note is taken from MSC electronics, Nepal.
