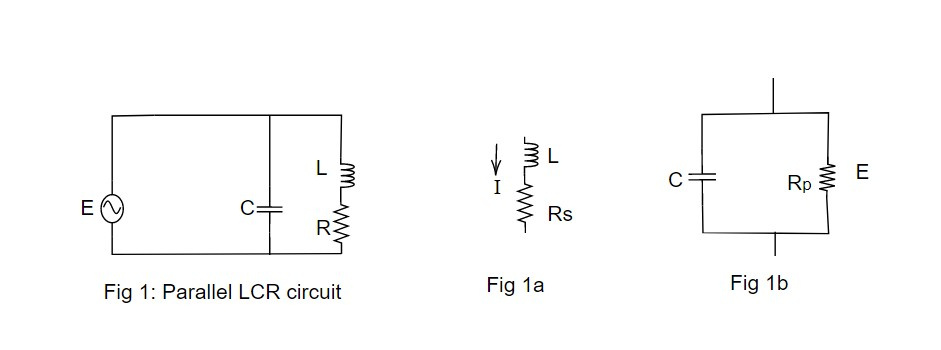

Energy stored by L and C in LCR parallel circuit excited at the resonant frequency W

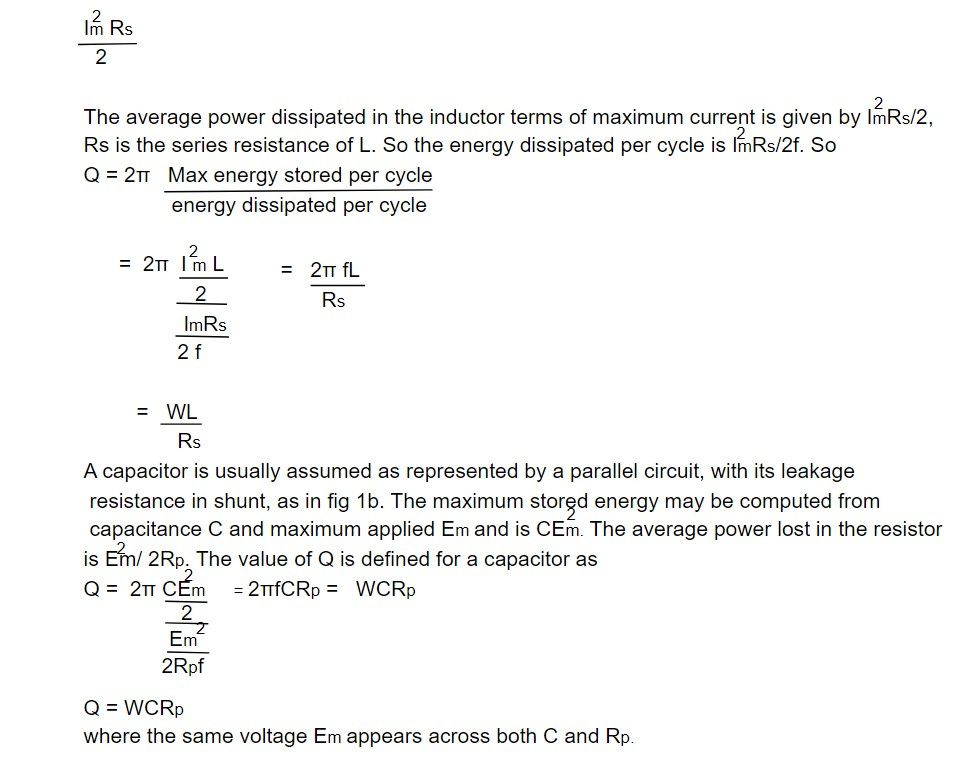

Figure of merit Q and Q-value is defined as energy stored per cycle to the maximum energy dissipated in the circuit. The maximum value of stored energy is present in an inductor at maximum current and is given by

This note is taken from Classical Mechanics, MSc physics, Nepal.
