Lower hybrid frequencies in the studies of waves in plasma

In a plasma, which is a collection of charged particles, different types of waves can occur, such as electromagnetic waves and plasma waves. The behavior of these waves depends on the properties of the plasma, including the density and temperature of the particles, as well as the strength of the magnetic field.

The lower hybrid frequency is specifically associated with a type of wave called the lower hybrid wave. This wave mode arises due to the combination of electric and magnetic fields in a plasma with a magnetic field present.

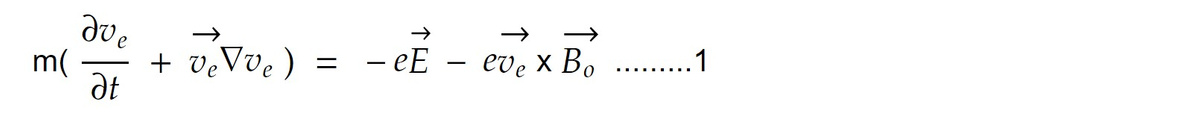

Let us consider the wave vector K of ion acoustic wave is exactly perpendicular to Bo. In such case, electron doesn't preserve charge neutrality by flowing along the lines of force and doesn't obey Boltzmann relation. Instead they will obey full equation of motion. The electron equation of motion is given by

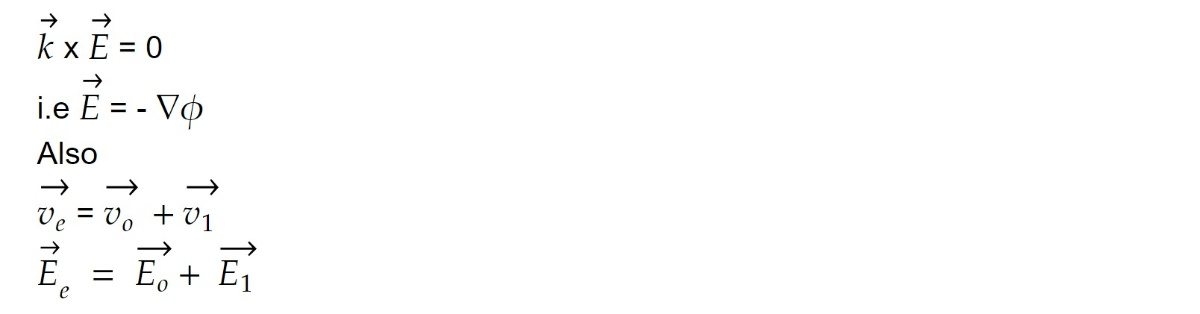

Let us consider infinite plasma equilibrium with no and Bo constant uniform and vo constant uniform and vo = Eo =0 and also Te =0. Also we assume

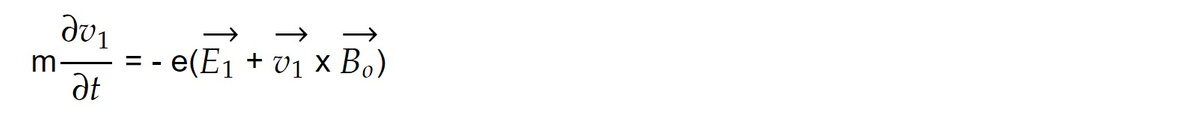

Under these assumptions equation 1 reduces to

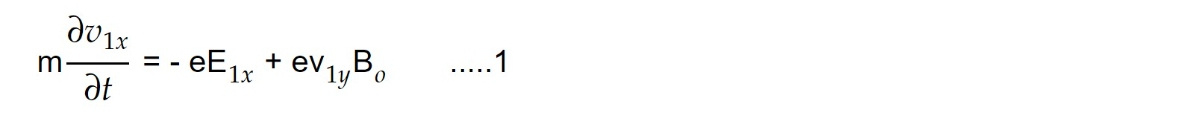

x component

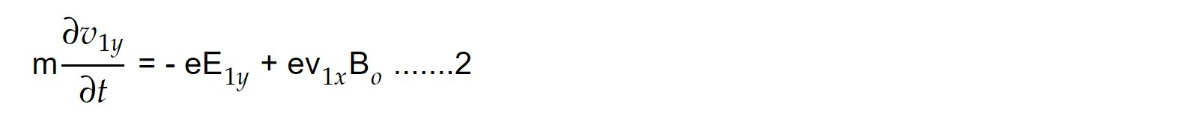

y component

z component

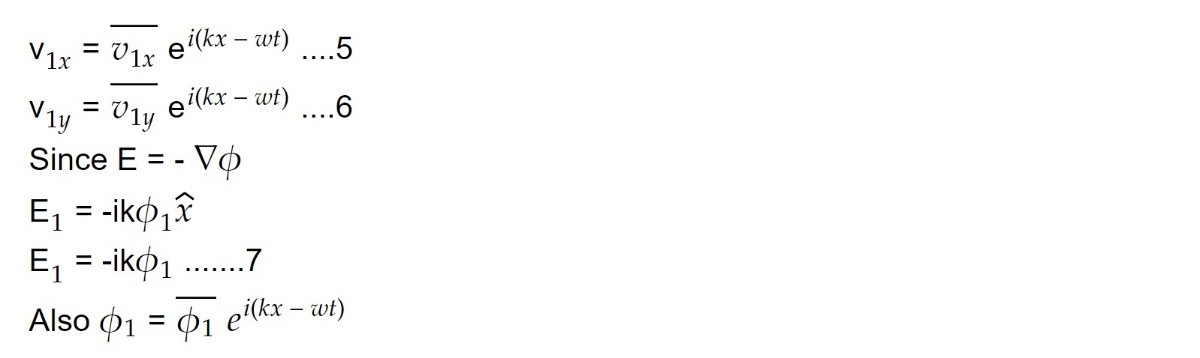

The oscillating quantities are assumed to be varying sinusoidal as,

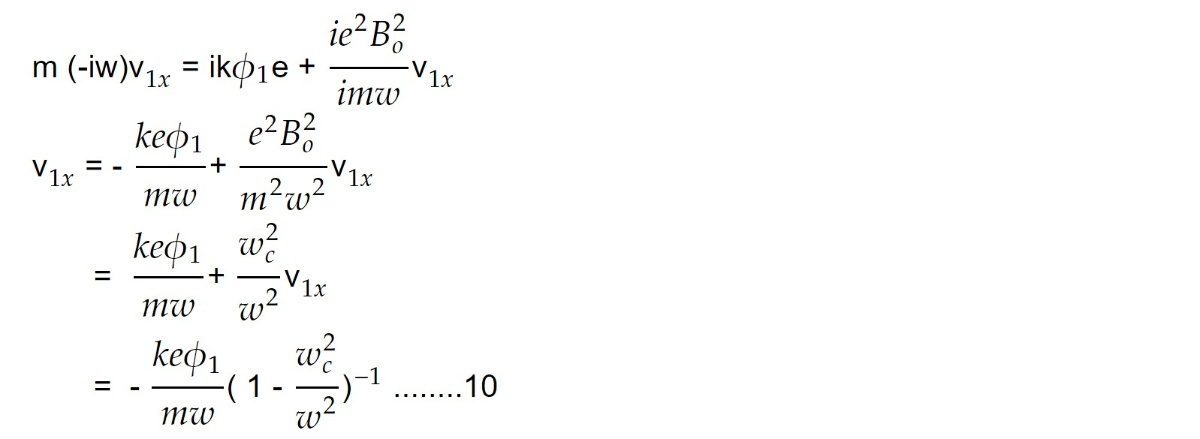

From equation2, 5, 6 and 7

Now, equation of continuity for electron is

∂ne/ ∂t + ∇(neve) = 0

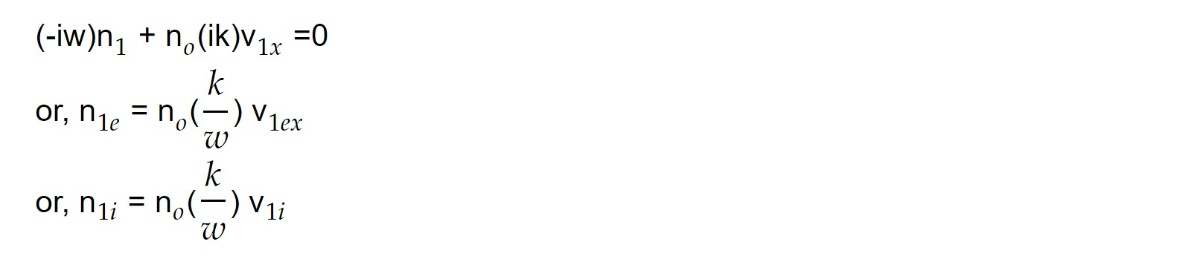

Linearizing it, we get

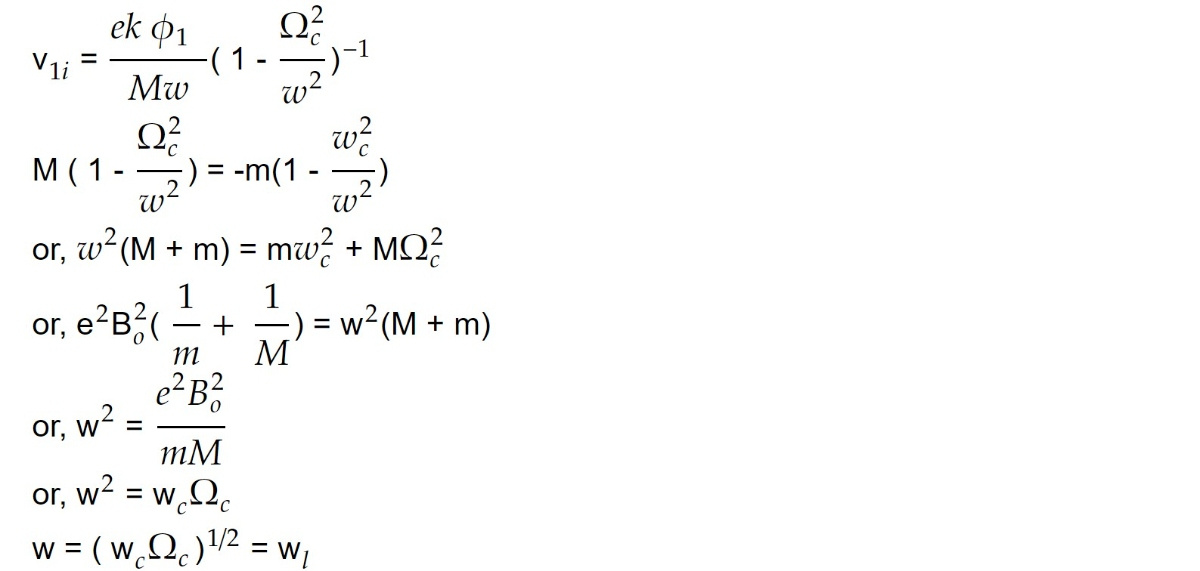

The plasma approximation, ne = ni, then requires

This is called lower hybrid frequency where ωc is the electron cyclotron frequency and Ωc is the ion cyclotron frequency. This is the frequency due to electrostatic ion oscillation with equation 4 is exactly divisible by π/2.

The electron cyclotron frequency, ωc, is the characteristic frequency at which electrons gyrate in a magnetic field, while the ion cyclotron frequency, Ωc, represents the characteristic frequency at which ions gyrate in the same magnetic field. These frequencies depend on the strength of the magnetic field and the mass and charge of the particles.

The lower hybrid frequency, ωlh, represents a combination of these two frequencies and is associated with a particular wave mode called the lower hybrid wave. This wave mode can propagate in a plasma and is commonly used in plasma heating and current drive applications.

By studying the lower hybrid frequencies and their interactions with the plasma, scientists can gain insights into wave-particle interactions, plasma heating, and current drive mechanisms. Understanding these frequencies and their role in wave propagation is essential in plasma physics research and the development of fusion devices.

ELI5: Imagine you have a big group of people holding hands and standing in a line. Now, imagine there is a wave that you want to send through this line. It's like a ripple that travels from one end to the other.

In a similar way, in a plasma (which is like a group of charged particles), we can have waves that travel through it. These waves help scientists understand how the plasma behaves and how to control it.

The lower hybrid frequency is a special number that tells us how fast these waves can travel through the plasma. It's like the speed limit for the waves!

The advantage of knowing the lower hybrid frequency is that it helps scientists design devices that use these waves to heat up or control the plasma. It's like knowing the speed at which the wave should travel to have the best effect.

By studying the lower hybrid frequency, scientists can figure out the right way to heat the plasma, make it more stable, or even produce energy from it. It's like knowing the best way to play with a group of people holding hands to create a fun and organized game!
